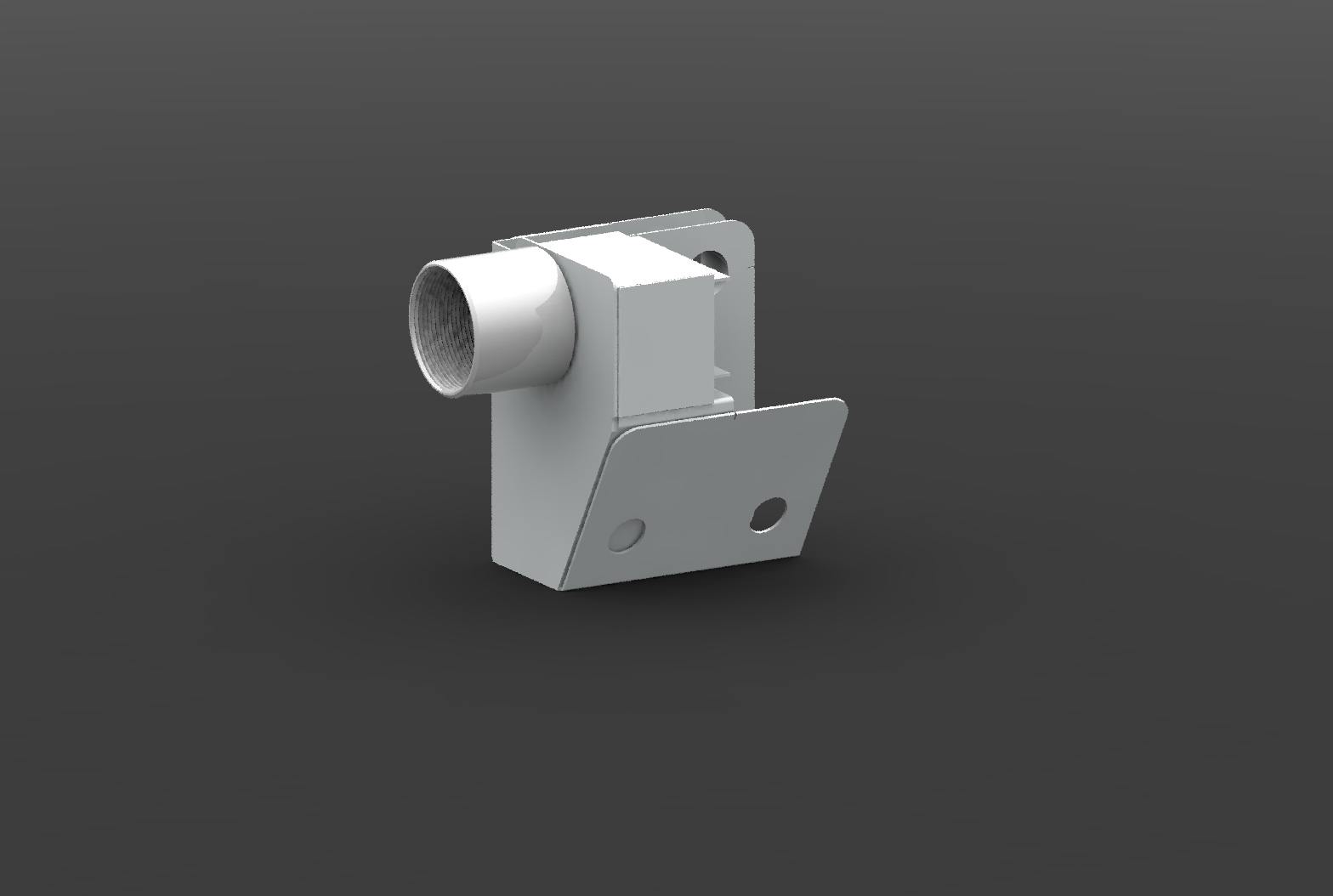

SLC THROUGH-WALL RUN END CONNECTOR LEFT

SLC-TWK-REC-LT
Category: Raceway Systems, SLC – Secure Large Carrier, Connectors,
Weight: 3.9 lbs
Dimensions: N/A
International harmonized code: 8536908010

The dual function Secure Large Carrier™ Through-Wall Run End Connector provides a solution for ending a section of Secure Large Carrier™ (SLC) Raceway within a hallway or room and offers an integrated 2” through-wall connection point to 2” x 2” Secure Raceway or other Holocom PDS component. Two manufactured mounting points allow simplified, labor-saving installation. The upper mounting point aligns with the mounting point on the end of the adjoining SLC Raceway. Four (4) integrated one-inch spacers stand the connector and raceway off the wall and allow 360° inspection. Use in conjunction with SLC Secure Raceway Joint (SLC-RW-SRJ) and #2 Through-Wall Kit (SDS-TW-002-12/24). Use the Left Connector for raceway runs that end to the left. Use the Right Connector for raceway runs that end to the right.

16-gauge electro-galvanized steel. Powder Coat Finish: White Textured. One 2” NPT coupler supplied with each connector. Two (2) manufactured mounting points. Four (4) integrated one-inch spacers. Use with Secure Large Carrier™ Raceway (SLC-WM-RCW-ST-20) and Secure Raceway Joint (SLC-RW-SRJ), and #2 Through-Wall Kit (SDS-TW-002-12/24). Packaged and sold individually.
